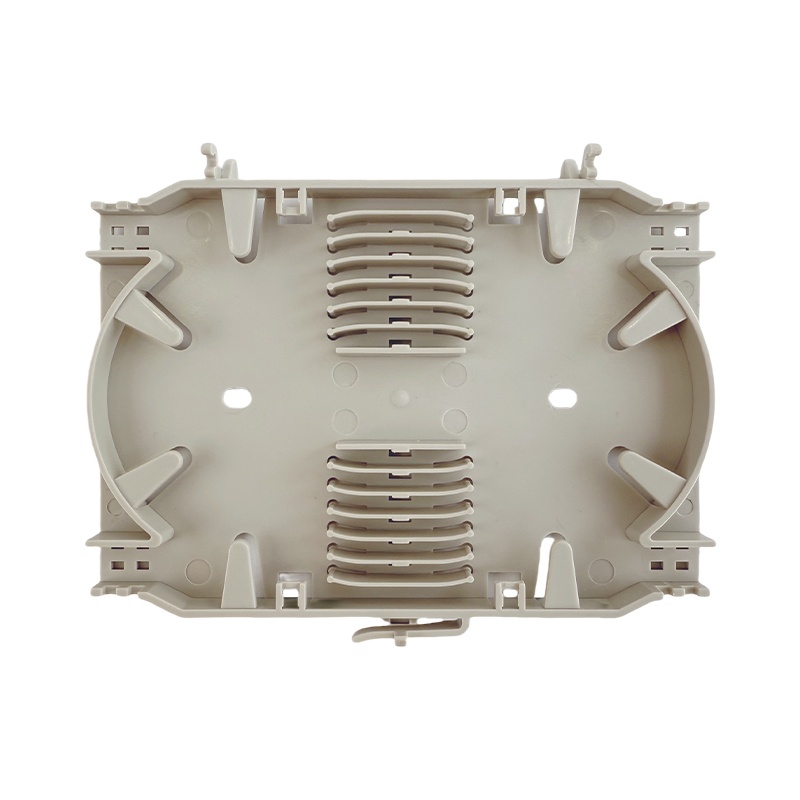

FST-24S-042 Fiber Optic Splice Tray, Hinged, 24-Fiber, Single Fusion

Application

For use with GJS-H2201 In-line Closure
For use with FDB-T224B-144F Fiber Distribution Box
For use with FDB-T224B-24SC Fiber Distribution Box
For use with FDB-T224C-144F Fiber Distribution Box
For use with FDB-T224C-24SC Fiber Distribution Box


Availability:



Inquiry Now！ Add to Basket Product Catalog

Model:
FST-24S-042
Download:
FST-24S-042 Datasheet.pdf
Model:
FST-24S-042

Features & Benefits

Specification

Ordering Notes

Documentation

FAQ

Features & Benefits

High-Performance Management Specially engineered for high-density fiber management within splice closures and distribution boxes, delivering reliable transmission performance.
Innovative Hinged Design Featuring a hinged stacking structure that allows trays to open like a book. Users can easily access any specific layer without disturbing other trays, significantly simplifying maintenance.
Strict Fiber Protection The internal architecture maintains a minimum bend radius of ≥30mm, ensuring minimal signal attenuation and long-term network integrity.
Versatile Application Fully compatible with GJS-H2201 Fiber Optic Splice Closures and FDB-T224B/C series Fiber Distribution Boxes.

Specification

Par No.	FST-24S-042
Access Type	Hinged
Splice Capacity	12 / 24 Fibers
Splicing Method	Single Fusion (Heat Shrink)
Dimensions (H x W x H)	144 × 115 × 17 mm
Fiber Bend Radius	≥ 30mm

Ordering Notes

Pre-installed Configuration

Typically, the FST-24S-042 splice trays are not sold as standalone units but are pre-installed as standard accessories within our Fiber Optic Splice Closures or Distribution Boxes.

Standalone Orders

We welcome individual purchases for maintenance or capacity expansion. If you require trays separately, please contact our sales team to:

Specify your required quantity.
Discuss preferred packaging methods (e.g., bulk industrial packing or individual kits).

Standard Kit (per unit if ordered separately)

1 Splice Tray per Stack	1 x FST-24S-042 Splice Tray. 1 x Plastic Cover. Optional: 24 x Fiber Heat Shrink Sleeves (available upon request).
2 Splice Tray per Stack	2 x FST-24S-042 Splice Tray. 1 x Plastic and 1 x Transparent Cover (based on stacking position). Optional: 48 x Fiber Heat Shrink Sleeves (available upon request).
4 Splice Tray per Stack	4 x FST-24S-042 Splice Tray. 1 x Plastic and 3 x Transparent Cover (based on stacking position). Optional: 96 x Fiber Heat Shrink Sleeves (available upon request).
6 Splice Tray per Stack	6 x FST-24S-042 Splice Tray. 1 x Plastic and 5 x Transparent Cover (based on stacking position). Optional: 144 x Fiber Heat Shrink Sleeves (available upon request).
...	...

FST-24S-042 Datasheet.pdf

Fibermint 2025 Fiber OpticProduct Catalog.pdf

FAQ

Q: Can the FST-24S-042 be stacked with the standard FST-12SP-043?

Yes. Both models share the same hinged pivot design and can be stacked interchangeably within the same closure or box to meet hybrid fiber management needs.

Q: Is the FST-24S-042 splice tray stackable?

Yes. Its hinged design supports vertical stacking. You can expand the capacity by adding more trays while maintaining easy access to each individual tray.

Q: Can I use this tray with other brands of closures?

Please confirm the mounting hole dimensions to ensure compatibility with your existing equipment.

Q: Why are there two types of covers?

The plastic (opaque) cover is used for the top tray of a stack for maximum protection. The transparent covers are used for intermediate trays to allow technicians to inspect fibers without opening the tray. 18

Q: Does it support Ribbon (Mass Fusion)?

The FST-24S-042 is specifically designed for Single Fusion. For Ribbon fiber applications, please contact our sales team for our specialized Ribbon Splice Tray series. 19
