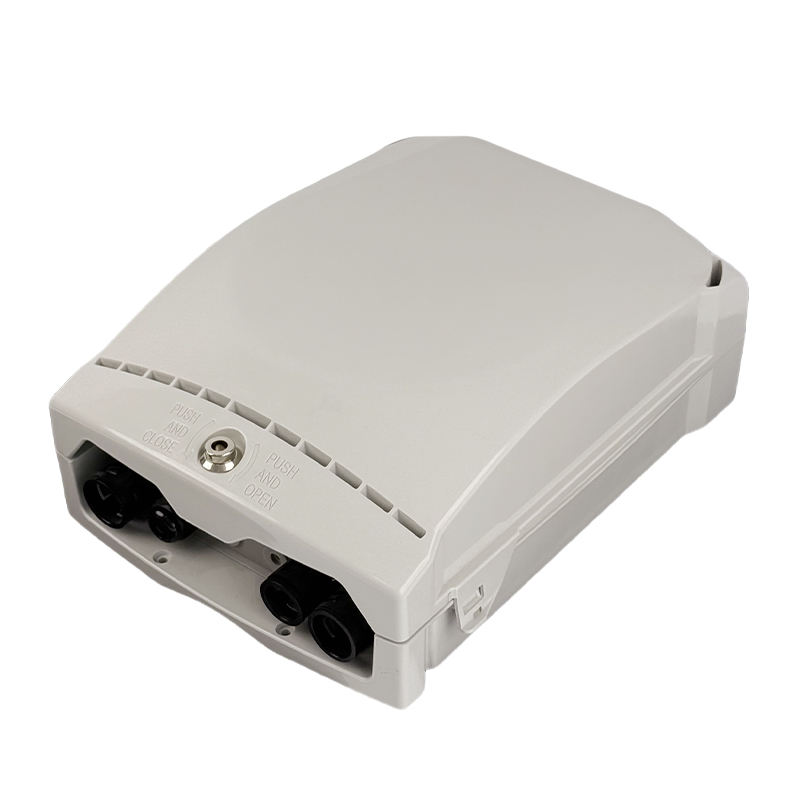

PTE-48 Fiber Distribution Box with Splitter Integration

Application

Fiber Aggregation Nodes: Serves as distribution hub for multi-building FTTH deployments or neighborhood cabinets.
High-Splitter Density Sites: Ideal for OSP (Outside Plant) cabinets requiring combined splicing, patching, and splitting functions.

Capacities

Splicing Capacity: 72 Fibers

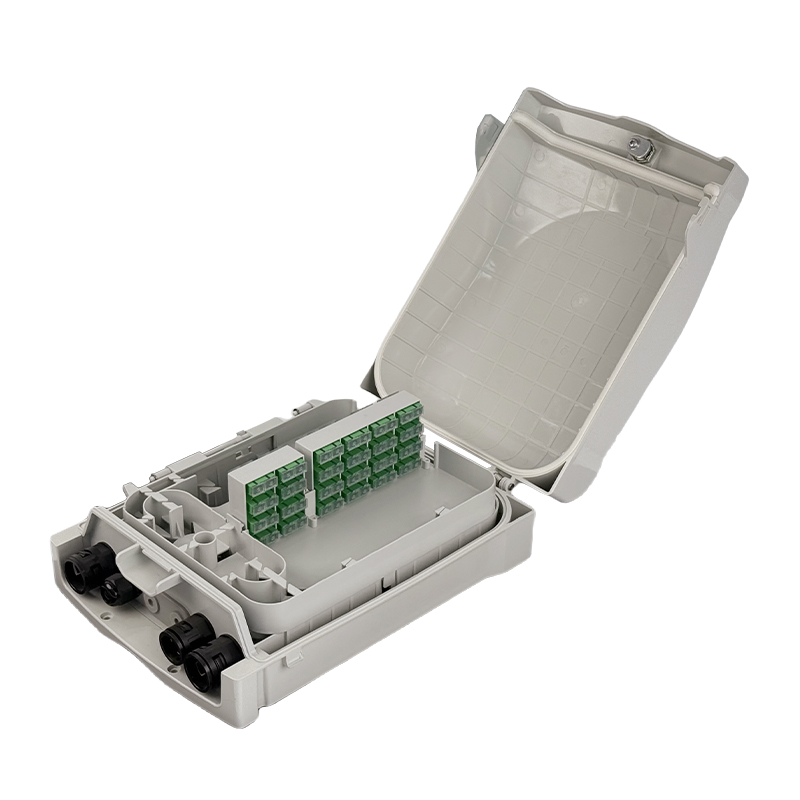

Patching Capacity: 48 SC Adapters
Splitter Capacity: 3 × 1:16 Micro PLC Splitter


Availability:



Inquiry Now！ Add to Basket Download Datasheet

Model:
PTE-48
Download:
PTE-48 Datasheet.pdf
Model:
PTE-48

PTE Series Comparison

Features & Benifits

Specification

Packing List

Documentation

PTE Series Comparison

Feature	PTE-12	PTE-24	PTE-48
Splicing Capacity	24 fibers	48 fibers	72 fibers
Patching Capacity	12 SC Adapters	24 SC Adapters	48 SC Adapters
Splitter Slots	None	None	3×1:16 PLC
Port System	3×Ø20mm	4×M25	Hybrid M20/M25+PG13.5
Best For	Single-home	MDU deployments	Neighborhood hubs

Features & Benifits

Triple-Function Design: Integrates 72 splices + 48 SC adapters + 3×1:16 splitters in single enclosure.
Military-Grade Sealing: EPDM strips + silicone rings ensure IP56 integrity with 20+ year lifespan.
Hybrid Port System: 2×Ø8-14mm entry + 3×M20/M25 exit ports support hybrid cable networks.
Galvanized Steel Reinforcement: Zinc-coated internal components resist corrosion in coastal/industrial zones.

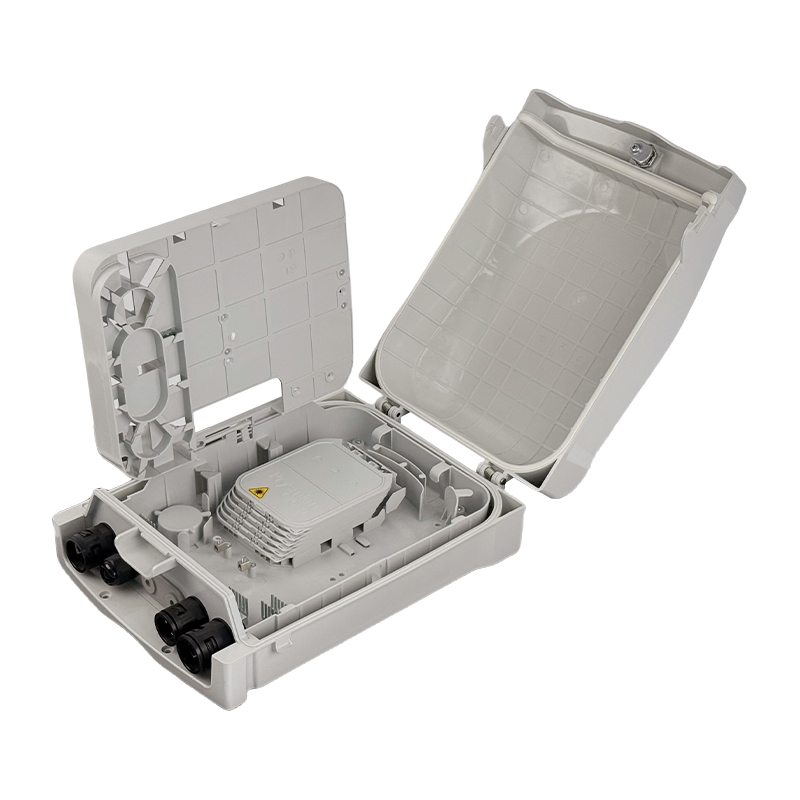

Future-Proof Tray System: 6 modular ABS trays (12 fibers each) allow capacity upgrades.
Splitter-Ready Architecture: Dedicated slots for three 1:16 PLC splitters (sold separately).

Specification

Part No.	PTE-48
Dimensions (L×W×H)	356×263.6×114.5 mm (14.0×10.4×4.5 in)
Enclosure Material	PC
Box Sealing Method	Silicone Gaskets + Snap-fit + Lock
Cable Entry Ports	2 (Mid-span Port) x Ø8-14mm
Branch Ports	1 x PG13.5
Cable Exit Ports	1 x AD21.2 Corrugated Pipe Joint (M20*1.5)
Cable Exit Ports	2 x AD25 Corrugated Pipe Joint (M25*1.5)
Max Patching Capacity	48 SC adapters
Max Splice Capacity	72 Fibers (Single-core)
Max Splice Trays	6 Trays
Tray Material	ABS
IP Rating	IP56
Mounting	Wall Mount / Pole Mount

Packing List

Carton Size	56x38x73.5CM
Carton Capacity	10 PCS/CTN
Carton G.W.	27 KG

PTE-48 Datasheet.pdf

Fibermint Catalogue (2023).pdf

Related Products

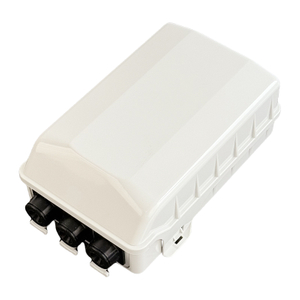

PTE-12 Compact Outdoor Fiber Distribution Box

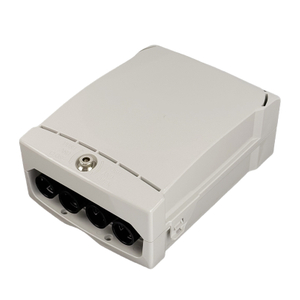

PTE-24 24-Core Fiber Distribution Enclosure
