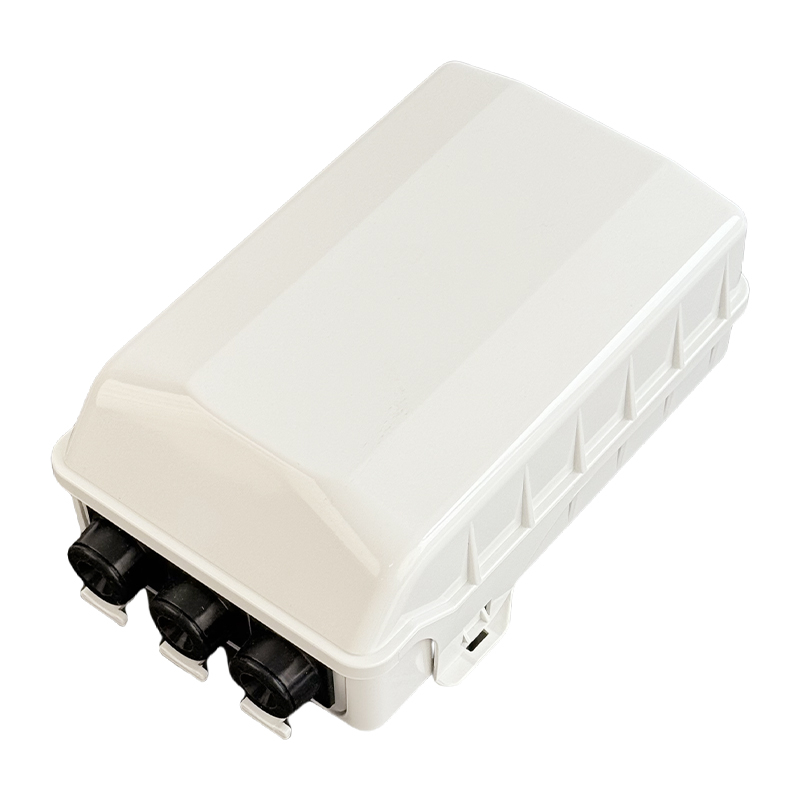

PTE-12
PTE-12 Datasheet.pdf
PTE Series Comparison
Features & Benifits
High-Density Management: Handles 24 splices + 12 SC adapters (8 flip-tray + 4 bottom ports) in ultra-compact design.
Extreme Environment Ready: IP56-rated PC enclosure withstands dust, rain, and -40°C to +65°C temperatures.
Simplified Cable Routing: 3 silicone-sealed ports (Ø20mm) accommodate multiple cable entries/exits.
Impact-Resistant Construction: IK10-rated housing survives accidental drops and vibrations.

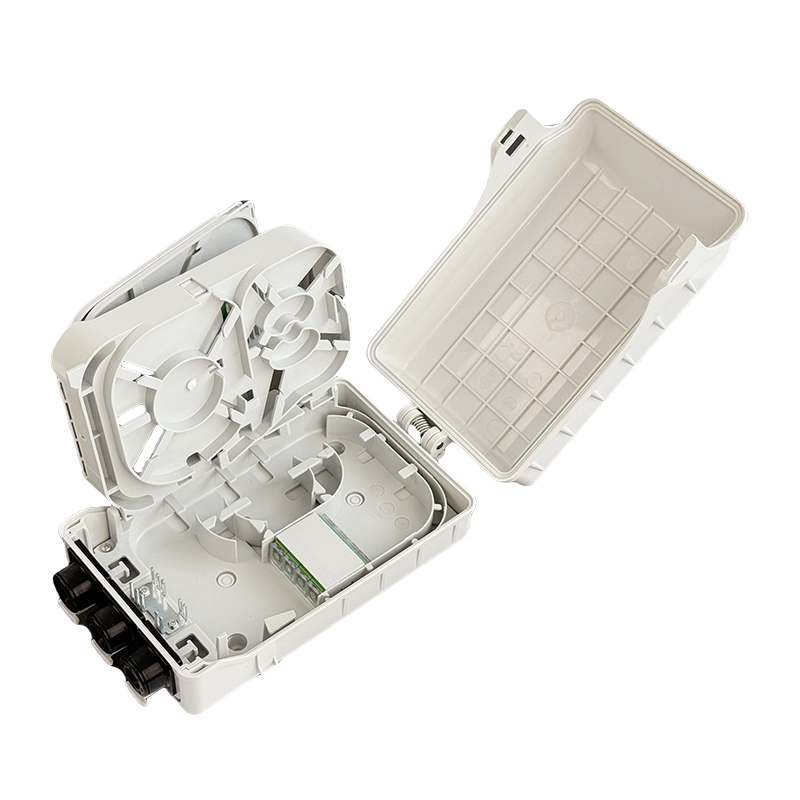

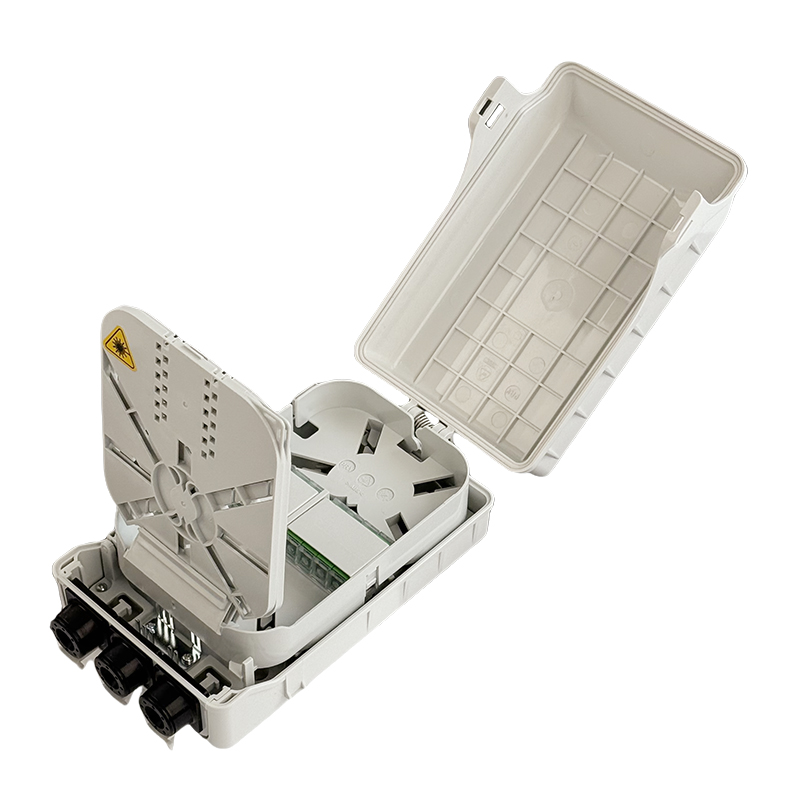

Organized Internal Layout: Two 12-fiber splice trays + flip tray enable tool-free access and tidy fiber routing.
Dual Mounting Flexibility: Pre-configured for wall or pole installation without additional kits.
Specification
Part No.
Dimensions (L×W×H)
178×133.5×73.5 mm (7.00×5.26×2.89 in)
Enclosure Material
PC
Box Sealing Method
Silicone Gaskets + Snap-fit (Non-locking)
Cable Sealing Type
Grommet
Cable Ports
3 ports (Ø20mm)
Max Patching Capacity
Max Splice Capacity
24 Fibers (Single-core)
Max Splice Trays
2 Trays
Tray Material
ABS
IP Rating
IP56
Mounting
Wall Mount / Pole Mount
Packing List
