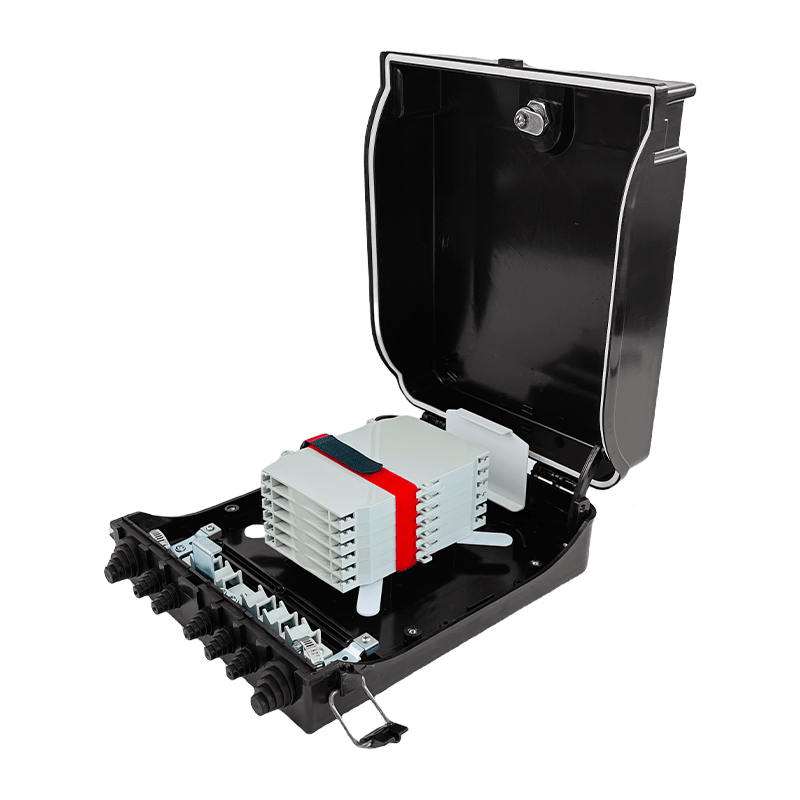

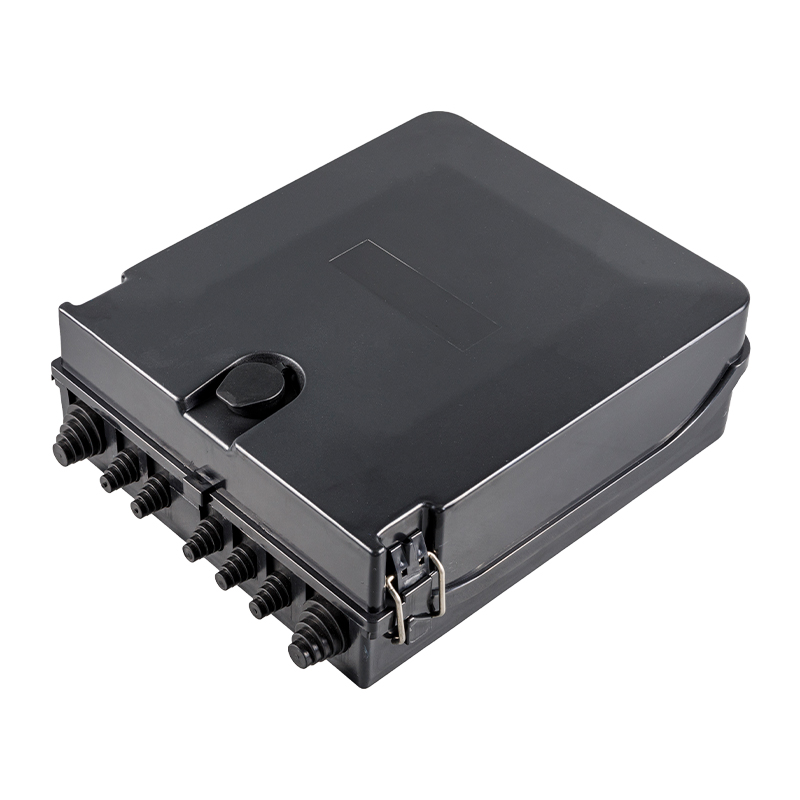

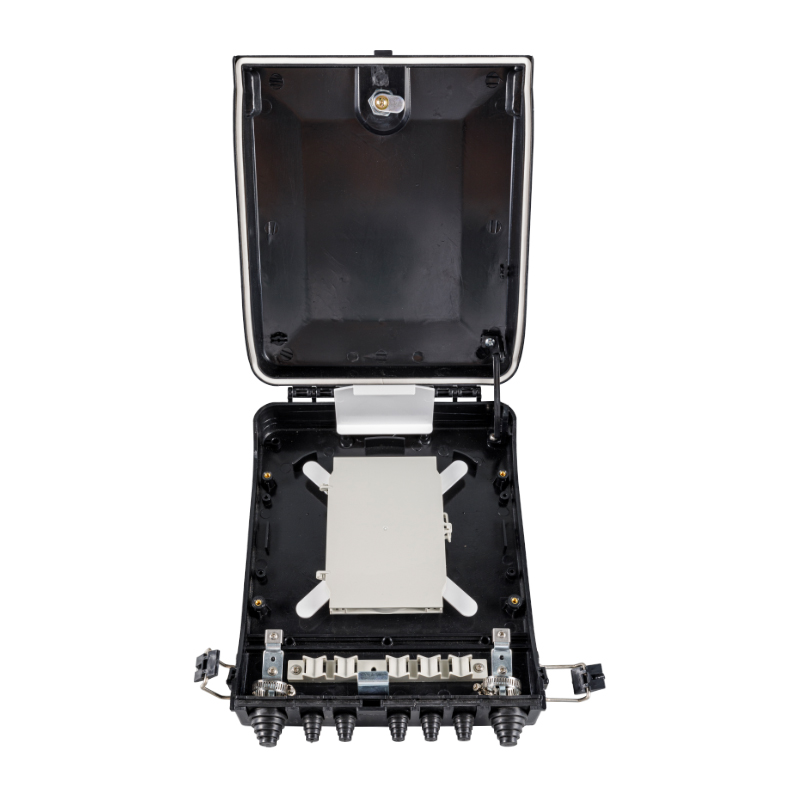

FDB-T224C-144F

Application

FTTx Network Integration: The FDB-T224C-144F distribution box supports splicing, cable fixing, and passive component integration for FTTx projects, ensuring efficient fiber management in optical networks.
Outdoor Durability: Rated IP55, it provides robust mechanical protection for outdoor wall-mounted or pole-mounted applications, safeguarding fibers in harsh environments.

Capacities

Splicing Capacity: 144F
Patching Capacity: -
Splitter Capacity: 1x8 or 1x16 Micro PLC Splitter (per Tray)


Availability:



Inquiry Now！ Add to Basket Download Datasheet

Customization Options

Features & Benifits

Specification

Packing List

Documentation

Customization Options

Color: Choose from black (default) or other customizable colors to match aesthetic or branding requirements (contact supplier for options).

Lockable Cover: Select a lockable cover with keys for secure access control or a non-lockable cover for easier access, based on project needs.

Splitter Configuration: Choose 1:8 or 1:16 micro PLC splitters per tray to optimize network distribution for project requirements.

Wall / Pole-Mounting Kit: Include a pole-mounting kit with clamps and support frame for pole-mounted installations, tailored to specific deployment scenarios.

Features & Benifits

High-Capacity Fiber Management: Supports up to 144F splicing with 6 trays (12/24F per tray) and integrates 1x8 or 1x16 micro PLC splitters for versatile FTTx deployments.

Robust IP55 Protection: Rubber sealing for main (Ø25 mm) and drop (Ø15 mm) cable ports ensures reliable protection against dust and water in outdoor conditions.

Flexible Cover Design: Fixed support bracket allows cover positioning at 90° or 180°, enhancing accessibility for installation and maintenance.

Secure Cable Management: Includes fixed support brackets and small metal clamps (Ø10-16 mm) for reliable cable fixing and strength member anchoring.

Versatile Installation: Supports wall or pole mounting, with customizable tray configurations for splicing or splitting to meet diverse project requirements.

Specification

Part No.	FDB-T224C-144F
Dimensions	245 x 296 x 94.5 mm
Main Cable Ports	2 × Ø25 mm
Drop Cable Ports	5 × Ø15 mm
Splice Capacity	144F
Splice Trays	6 PCS
Splices per Tray	12/24F
Splitter (with Splitter Tray)	1x8 or 1x16 micro PLC splitter
Mount Methods	Wall-mounted, pole-mounted
Protection Grade	IP55

Packing List

Carton Size	533541
Carton G.W.	15 KG
Carton Capacity	6 PCS/CTN

Fibermint Catalogue (2023).pdf

Related Products

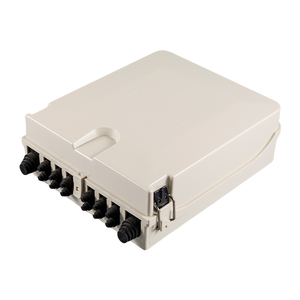

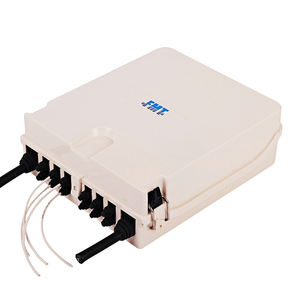

FDB-T224B-144F

FDB-T224B-24SC

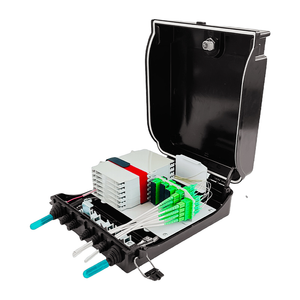

FDB-T224C-24SC
