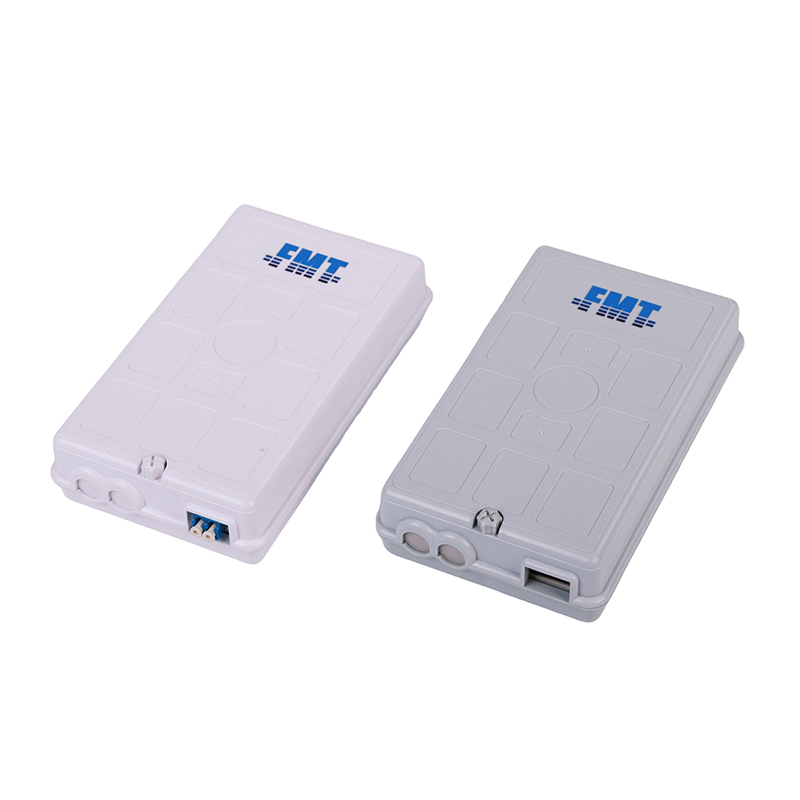

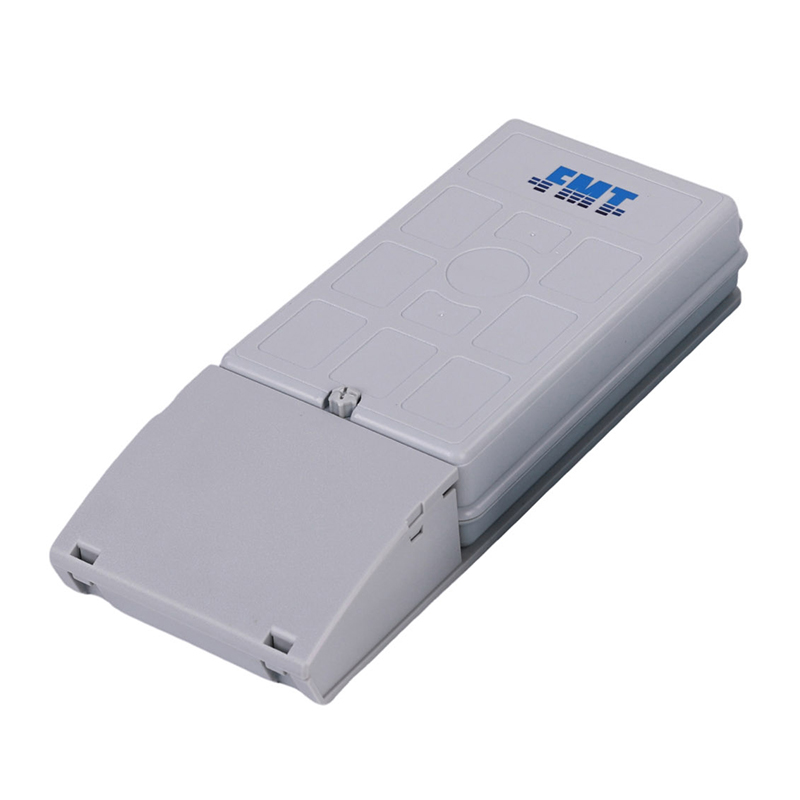

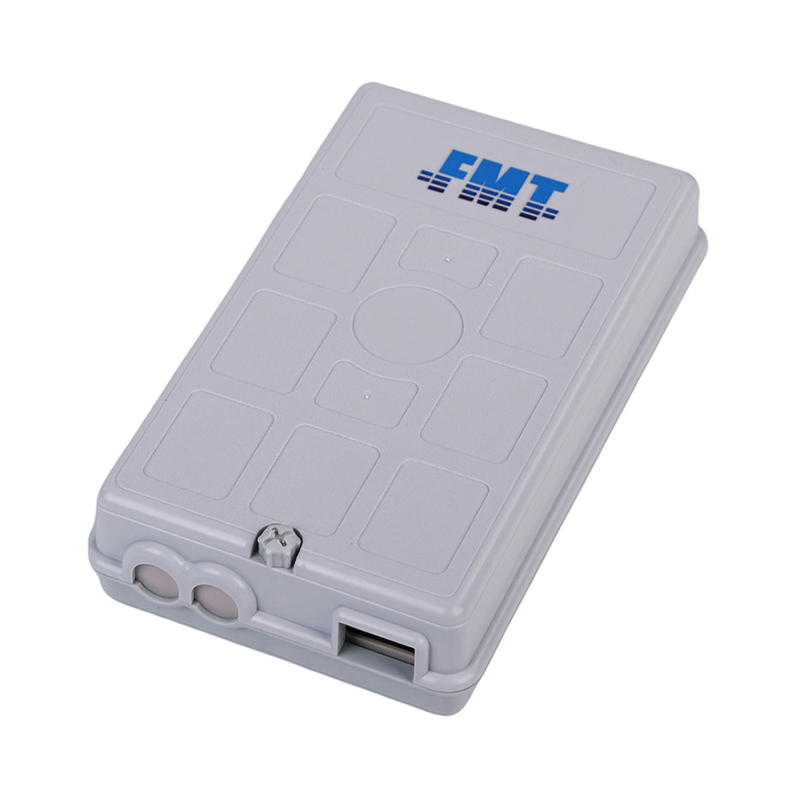

GP-T448-8P
Features & Benifits
Durable Construction: Made from high-strength, ultra-high-viscosity plastic, offering a robust and aesthetically pleasing design for long-term indoor use.
Efficient Fiber Management: Supports up to 24FO splicing (2 trays, 6/12FO each) and 8 SC adapters, with a micro PLC splitter 1:8 slot for flexible FTTH configurations.

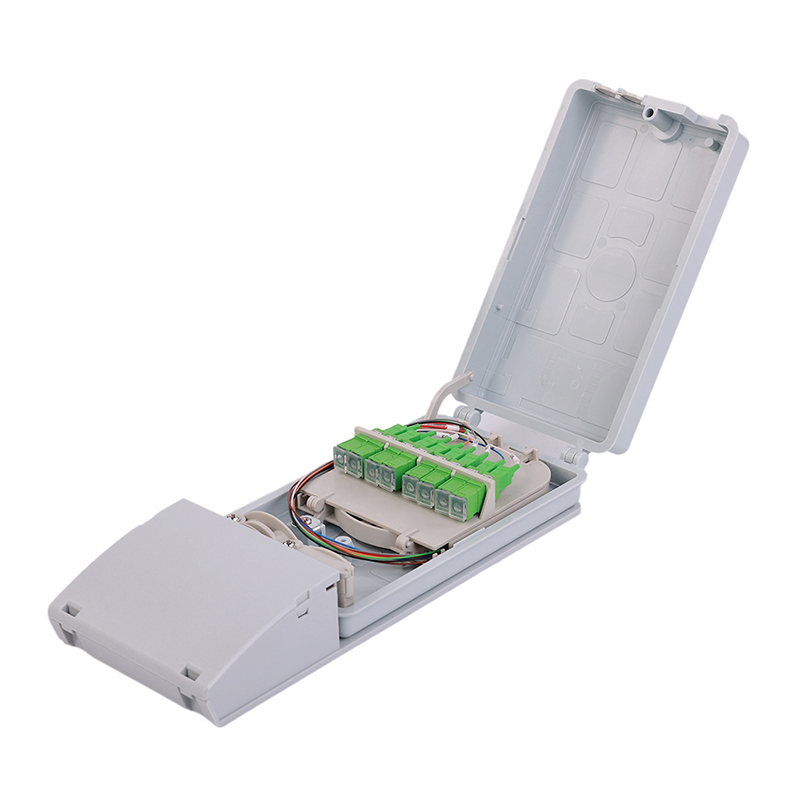

User-Friendly Design: Splice trays feature a stack structure that flips 90° for easy installation and maintenance, enhancing accessibility.
Comprehensive Cable Management: Includes fiber optic cable fixing components, strength core fixing components, and routing rings for organized cable retention.
Secure and Compact: Screw lock ensures secure access, with a compact size (198 x 112 x 45 mm) ideal for space-constrained indoor installations.
Specification
Part No. | GP-T448-8P |
Dimensions | 198 x 112 x 45 mm |
Main Cable Ports | 2 × Ø15 mm (max) |
Drop Cable Ports | 12 × Ø3 mm |
Number of Trays | 2 (max) |
Splice Capacity per Tray | 6/12 FO |
Adapter Support | 8 SC |
Lock Type | Screw lock |
Mount Type | Wall-mounted |
Protection Grad | Not specified (assumed IP43 based on similar indoor products) |
Packing List
Carton Size | 61*43*29 |
Carton G.W. | 16 KG |
Carton Capacity | 50 PCS/CTN |
