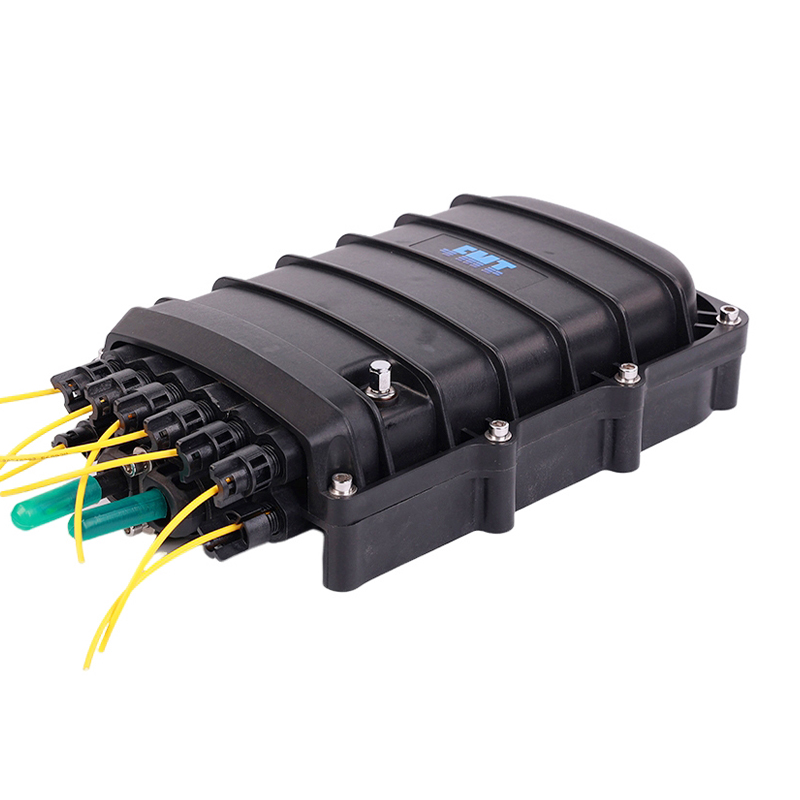

GJS-HF96-8B Half Mechanical Fiber Optic Splice Closure

Application
  • Perfect for FTTH deployments, telecom networks, and hybrid fiber systems requiring reliable splicing between main cables (φ7.5–15 mm) and drop cables (φ6–8 mm).
  • Adaptable to diverse environments: aerial poles, underground ducts, wall-mounted setups, and handholes, ensuring stable performance in temperatures from -20℃ to +65℃.

Capacities
  • Splicing Capacity: 96 Fibers
  • Patching Capacity: -
  • Splitter Capacity: -
Availability:
Inquiry Now！ Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
sharethis sharing button
Customization Options
Features & Benifits
Specification
Packing List
Documentation


Customization Options


Cable Port Sealing: Choose between Ø11.5 mm or Ø15 mm silicon rubber grommets to match main cable diameters (Ø7.5-15 mm) for optimal sealing performance.

Mounting Kits: Select wall-mounting, pole-mounting, or aerial kits to tailor the closure for specific installation environments.

Air Valve Configuration: Opt to utilize the integrated air valve for pressure testing to ensure sealing integrity in harsh conditions.



Features & Benifits


  • Flexible Port Design: 2 mid-span ports (φ7.5–15 mm) and 8 drop ports (φ6–8 mm) accommodate mixed cable sizes, eliminating the need for multiple closure models.

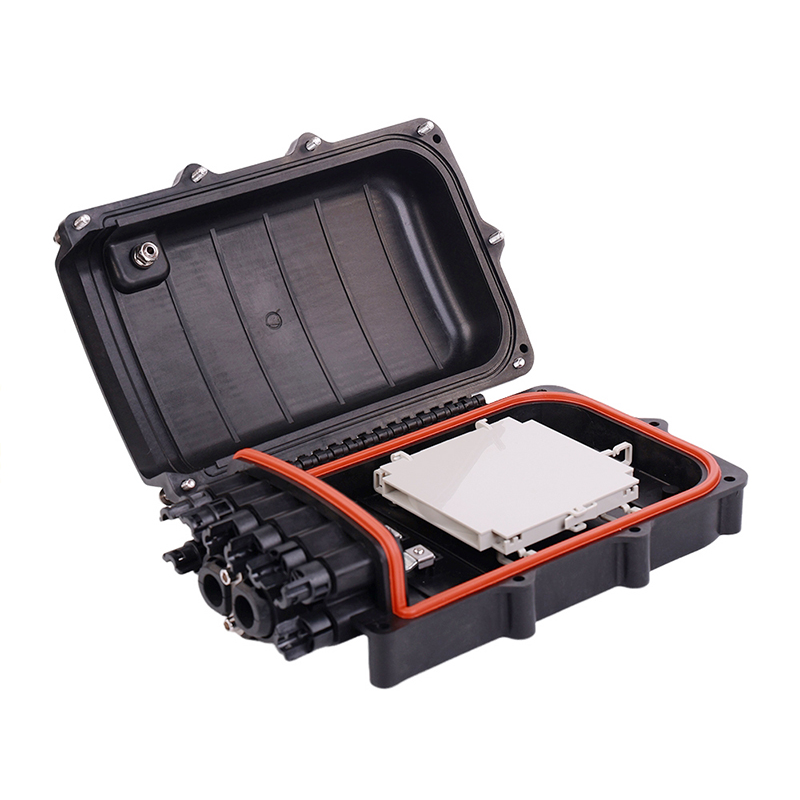

  • Efficient Splicing Management: 4 splice trays (12–24 fibers each) support 96 fibers, with transparent covers for easy inspection and organized routing.

  • Quick Installation: Tool-free access and snap-fit design reduce setup time; included wrenches simplify port sealing and cable securing.

  • Reliable Protection: Silicon rubber gaskets and mechanical fasteners ensure robust sealing, guarding against moisture and dust in harsh outdoor conditions.

  • Versatile Mounting: Compatible with aerial, underground, wall, duct, and handhole installations, adapting to any project requirement.



Specification


Part No.

GJS-HF96-8B

Dimensions

318×195×82 mm (12.52×7.68×3.23 in)

Material of EnclosureMPP

Cable Sealing Method

Rubber Grommet

Cable Entry Port

2 Mid-span ports (Ø7.5-15mm)

Cable Exit Ports

8 Drop cable ports (Ø6-8mm)

Splicing Capacity (Max)

96 Fibers (Single-core)

Number of Splice Trays (Max)

4 Trays

Material of Trays

ABS

Inflating Valve

Pre-installed (Optional)

Grounding Device

Not Supported

IP Rating

IP68

Mounting

Aerial / Underground / Wall Mount / Duct



Packing List


Carton Size

64×43×45CM

Carton Capacity10 PCS/CTN
Carton G.W.21 KG
