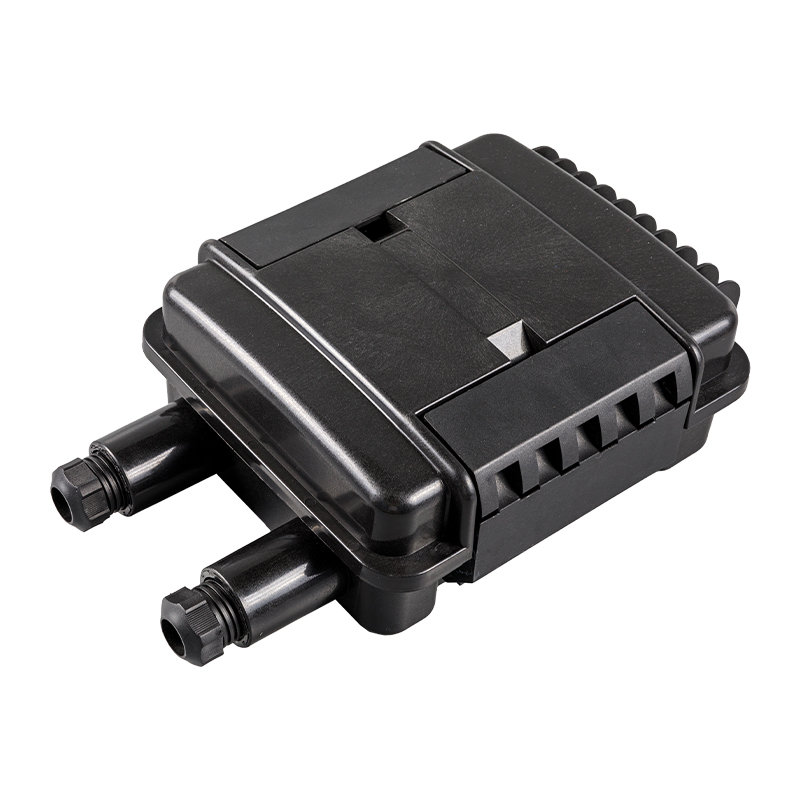

GJS-B330C-2P
GJS-B330C-2P

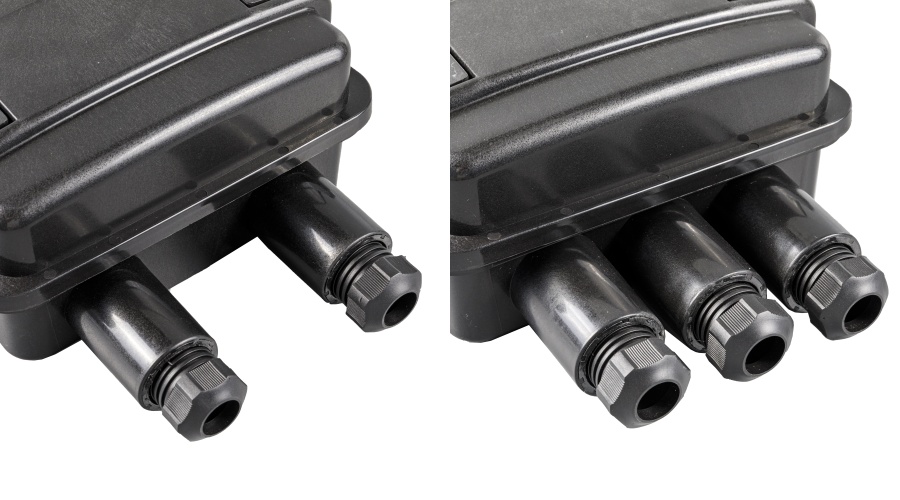

GJS-B330C Series Comparison
Parameter | GJS-B330C-2P | GJS-B330C-3P | Key Difference |
---|---|---|---|
Port Configuration | 2 Ports (Ø8-18mm) | 3 Ports (Ø8-18mm) | -1 port |
Features & Benifits
Industrial Durability: PP+GF housing resists acid, alkali, and aging, ensuring long-term performance in outdoor environments.
IP68 Waterproofing: Silicon rubber shell seals and mechanical port seals prevent water and dust ingress, even in harsh conditions.
Easy Maintenance: Reusable design allows hassle-free reopening for inspections or rework, with 40 mm fiber bending radius to protect signal integrity.

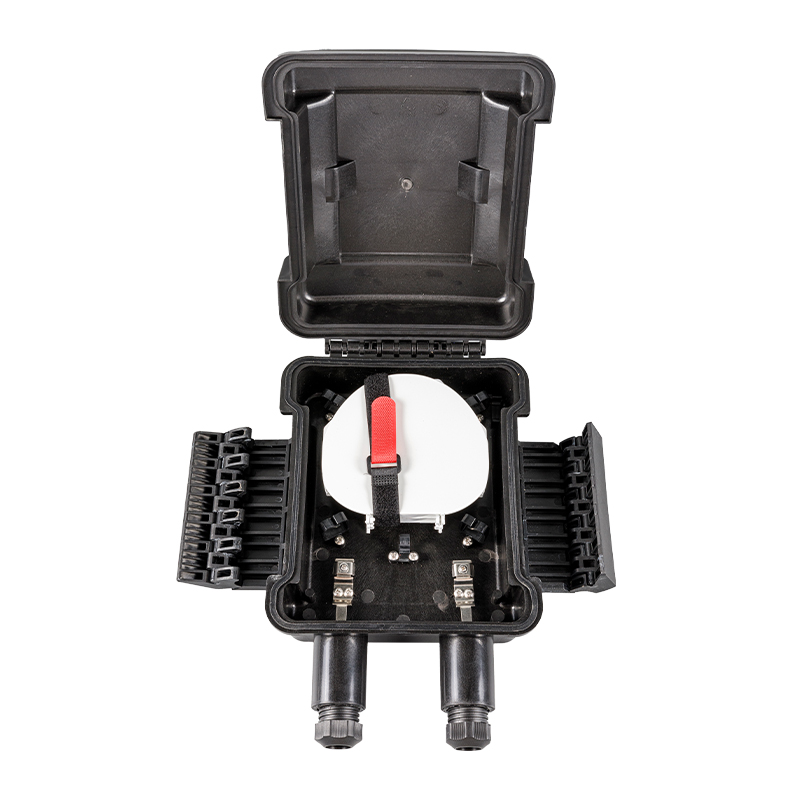

Compact Capacity: 2 splice trays support up to 24 single-core fibers, balancing space efficiency with small to medium-scale splicing needs.
Specification
Part No. | GJS-B330C-2P |
Dimensions | 330×220×110 mm |
Material of Enclosure | MPP |
Cable Sealing Method | Rubber Grommet |
Cable Entry Port | 1ר8-18mm |
Cable Exit Ports | 1ר8-18mm |
Splicing Capacity (Max) | 48 Fibers (Single-core) |
Number of Splice Trays (Max) | 4 Trays |
Material of Trays | ABS |
IP Rating | IP68 |
Mounting | Aerial / Underground / Wall Mount / Duct |
Packing List
Carton Size | 67×35×63CM |
Carton Capacity | 15 PCS/CTN |
Carton G.W. | 29 KG |
