GJS-H3306C 288 Fibers Aerial In-line Splice Closure

GJS-H3350C-6T 288 Fibers Aerial In-line Splice Closure

Application

Engineered for large-scale outdoor fiber networks, including telecom backbones and FTTH deployments.
Ideal for aerial cable systems (with optional hanging kits) and direct-buried installations, providing secure splicing for 288 fibers in harsh environments.

Capacities

Splicing Capacity: 288 Fibers
Patching Capacity: -
Splitter Capacity: -


Availability:



Inquiry Now！ Add to Basket Download Datasheet

Model:
GJS-H3350C-6T
Download:
GJS-H3350C-6T Datasheet.pdf
Model:
GJS-H3350C-6T

GJS-H3350C Series Comparison

Features & Benifits

Specification

Packing List

Documentation

GJS-H3350C Series Comparison

Parameter	GJS-H3350C-6T	GJS-H3350C-12T	Key Difference
Dimensions (L×W×H)	495×175×130 mm	495×175×160 mm	↑ Height +30 mm
Max Capacity	288 fibers	576 fibers	⭐ Double capacity
Splice Trays	6 trays	12 trays	Supports high-density layout
Splice Sleeves	144-288 pcs	288-576 pcs	Double quantity
G.W. (Packed)	19 KG	23 KG	Slightly heavier
Recommended Application	Compact projects	Large-scale deployments	Core networks/Data centers

Features & Benifits

Massive Fiber Capacity: 6 splice trays (24–48 fibers each) handle up to 288 fusions, meeting growing network demands.
Flexible Port Design: 3 inlets + 3 outlets with mixed diameters (Ø16/23 mm) accommodate various cable sizes, simplifying integration.
Rugged Durability: MPP housing resists UV, corrosion, and impacts, while 48-hour salt spray resistance ensures longevity in coastal or industrial areas.
IP68 Waterproofing: Silicone port seals and mechanical closure seals prevent water/dust ingress, even in submerged or high-moisture environments.
Easy Installation: Optional aerial kit enables quick overhead mounting; direct-buried setup requires no extra components, reducing deployment time.
Transparent Tray Covers: Allow visual inspection of fibers without opening the closure, streamlining maintenance.

Specification

Part No.	GJS-H3350C-6T
Dimensions	495×175×130 mm (19.49×6.89×5.12 in)
Material of Enclosure	PC or PP+GF
Cable Sealing Method	Rubber Grommet
Cable Entry/Exit Ports	3 / 3 (In-line)
Cable Port Diameter	2×Ø16 mm & 4×Ø23 mm
Splicing Capacity	288 Fibers (Single-core)
Number of Splice Trays	6 Trays
Material of Trays	ABS
Inflating Valve	Not Supported
Grounding Device	Not Supported
IP Rating	IP68
Mounting	Aerial / Wall-mounted / Direct-buried

Packing List

Carton Size	53×50×30CM
Carton Capacity	4 PCS/CTN
Carton G.W.	19 KG

GJS-H3350C-6T Datasheet.pdf

Fibermint Catalogue (2023).pdf

Related Products

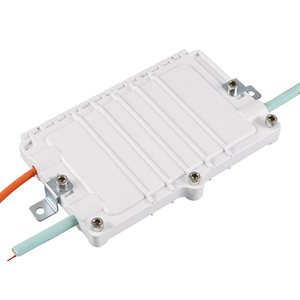

GJS-H1203 White Mini Drop Cable Splice Closure (ASA Material)

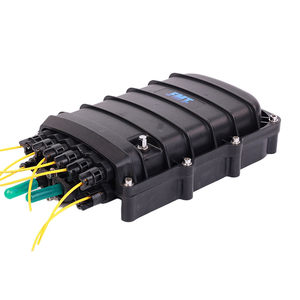

GJS-HF96-8B Half Mechanical Splice Closure
