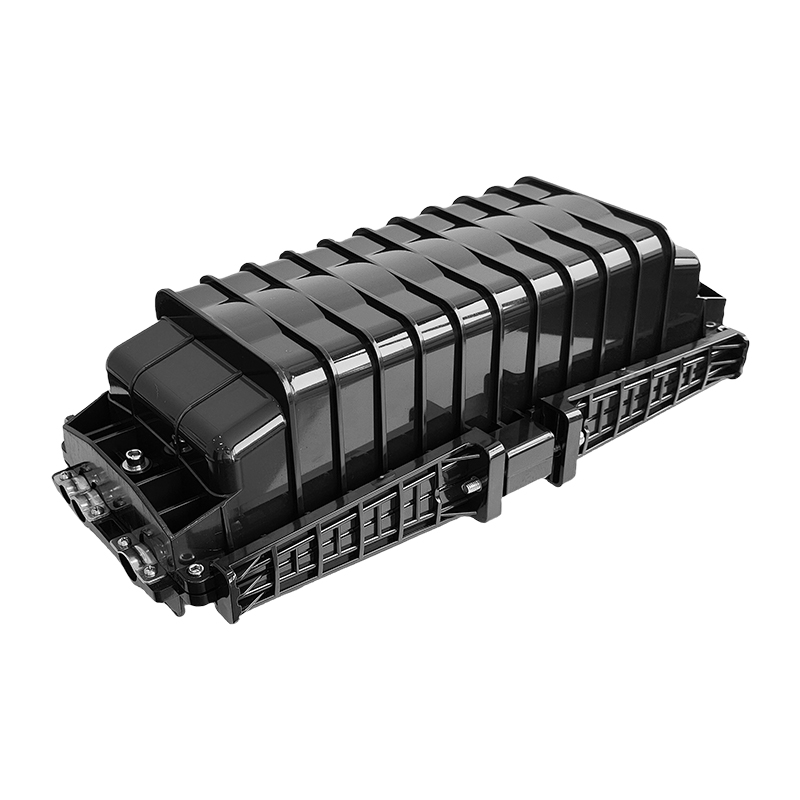

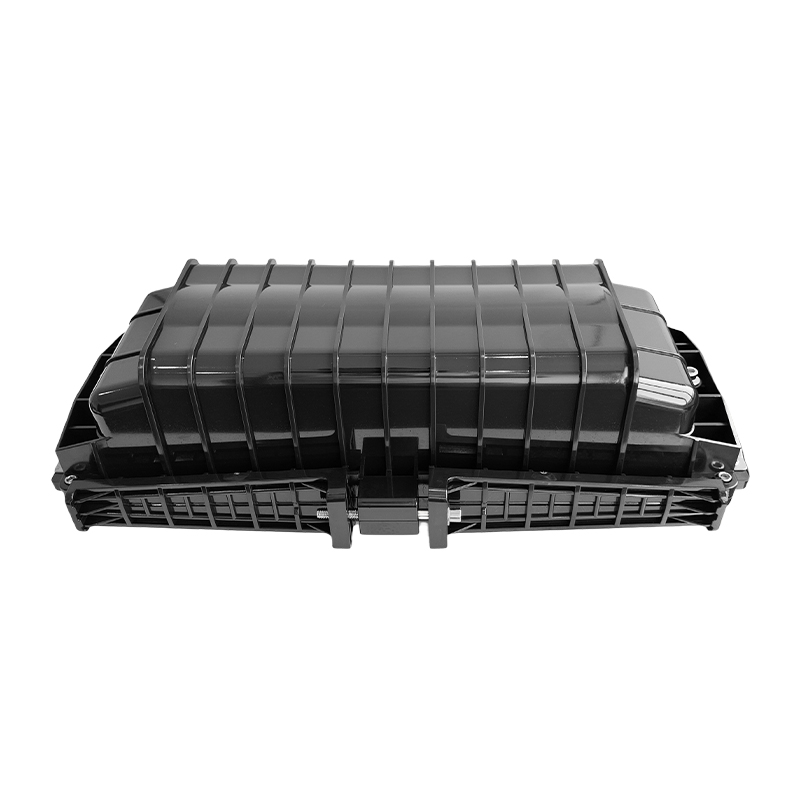

GJS-H3350C-12T 576-Core In-line Fiber Optic Splice Closure

Application
  • Engineered for large-scale outdoor fiber networks, including telecom backbones and FTTH deployments.
  • Ideal for aerial cable systems (with optional hanging kits) and direct-buried installations, providing secure splicing for 288 fibers in harsh environments.

Capacities
  • Splicing Capacity: 576 Fibers
  • Patching Capacity: -
  • Splitter Capacity: -
Availability:
Inquiry Now！ Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
sharethis sharing button
GJS-H3350C Series Comparison
Features & Benifits
Specification
Packing List
Documentation


GJS-H3350C Series Comparison



ParameterGJS-H3350C-6TGJS-H3350C-12TKey Difference
Dimensions (L×W×H)495×175×130 mm495×175×160 mm↑ Height +30 mm
Max Capacity288 fibers576 fibers⭐ Double capacity
Splice Trays6 trays12 traysSupports high-density layout
Splice Sleeves144-288 pcs288-576 pcsDouble quantity
G.W. (Packed)19 KG23 KGSlightly heavier
Recommended ApplicationCompact projectsLarge-scale deploymentsCore networks/Data centers



Features & Benifits

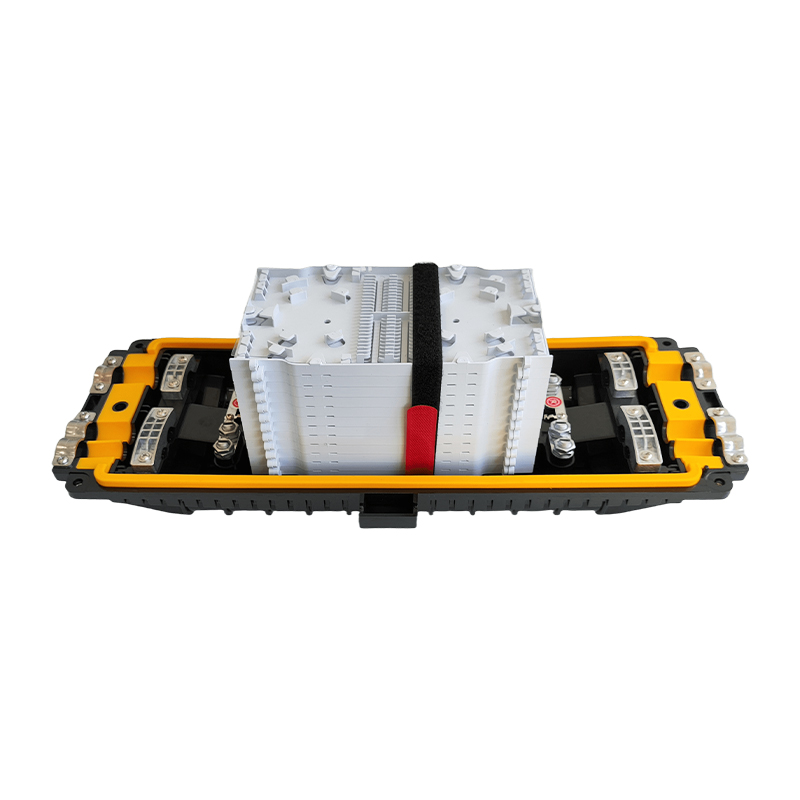

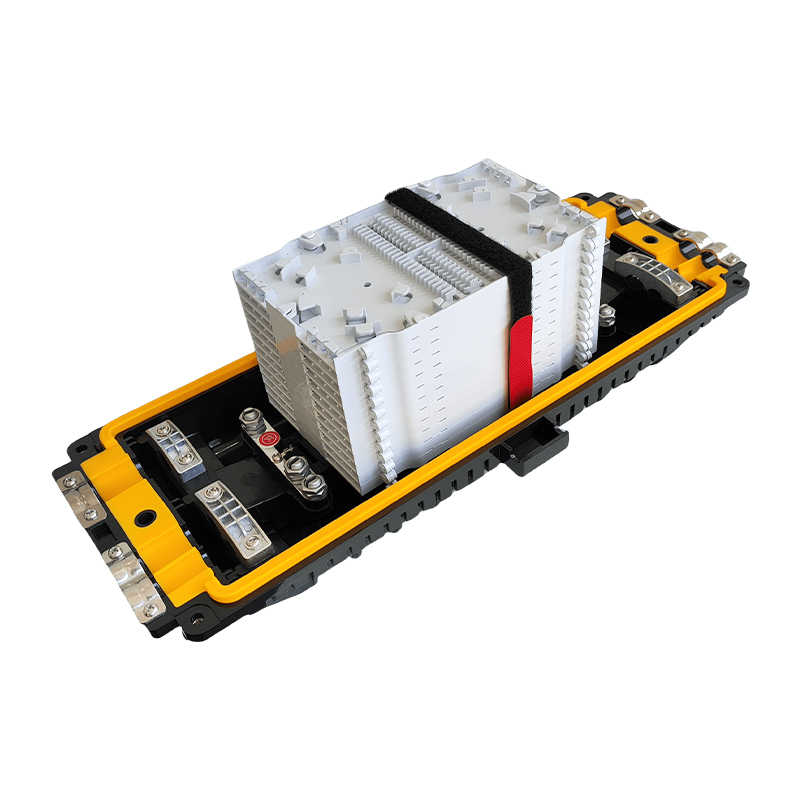

  • Massive Fiber Capacity: 12 splice trays (24–48 fibers each) handle up to 576 fusions, supporting future network growth.

  • Rugged Durability: MPP housing resists UV, chemicals, and impacts; 48-hour salt spray resistance ensures longevity in coastal/industrial areas.

  • IP68 Waterproofing: Advanced sealing (silicone ports + mechanical closure) prevents water/dust ingress, even in submerged or high-moisture environments.

  • Flexible Port Configuration: 3 inlets + 3 outlets with mixed diameters (Ø16/23 mm) accommodate various cable sizes, simplifying integration.

  • Easy Deployment: Optional aerial kit enables quick overhead mounting; direct-buried setup requires no extra components, reducing installation time.

  • Transparent Tray Covers: Allow visual inspection without opening the closure, streamlining maintenance and troubleshooting.


Specification


Part No.

GJS-H3350C-12T

Dimensions

495×175×160 mm (19.49×6.89×6.30 in)

Material of Enclosure

PC or PP+GF

Cable Sealing MethodRubber Grommet
Cable Entry/Exit Ports

3 / 3 (In-line)

Cable Port Diameter

2×Ø16 mm & 4×Ø23 mm

Splicing Capacity576 Fibers (Single-core)
Number of Splice Trays12 Trays
Material of TraysABS
Inflating Valve

Not Supported

Grounding Device

Not Supported

IP Rating

IP68

Mounting

Aerial / Wall-mounted / Direct-buried



Packing List


Carton Size53×50×38CM
Carton Capacity4 PCS/CTN
Carton G.W.23 KG
