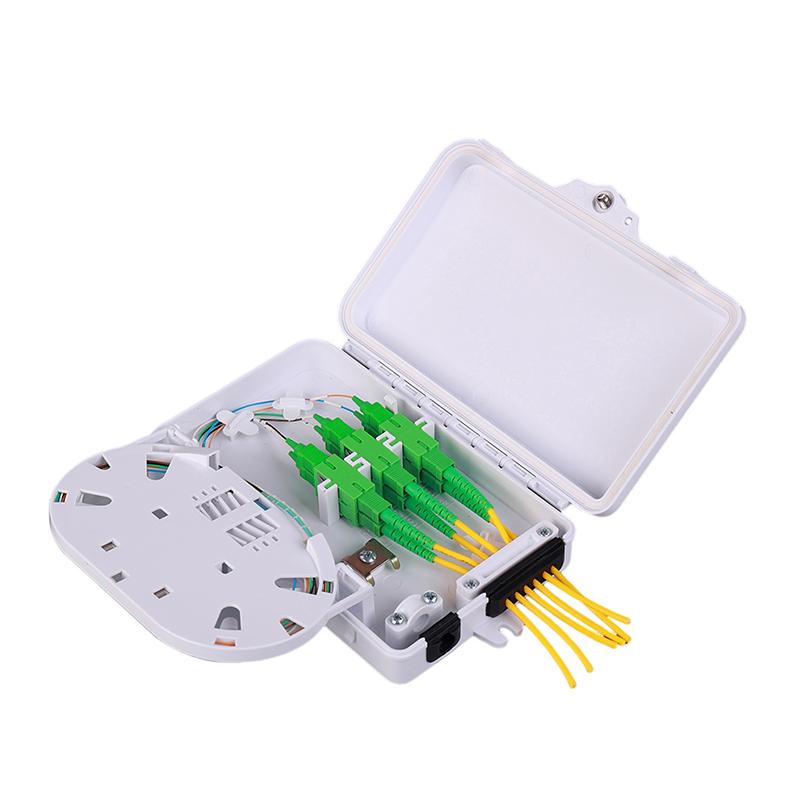

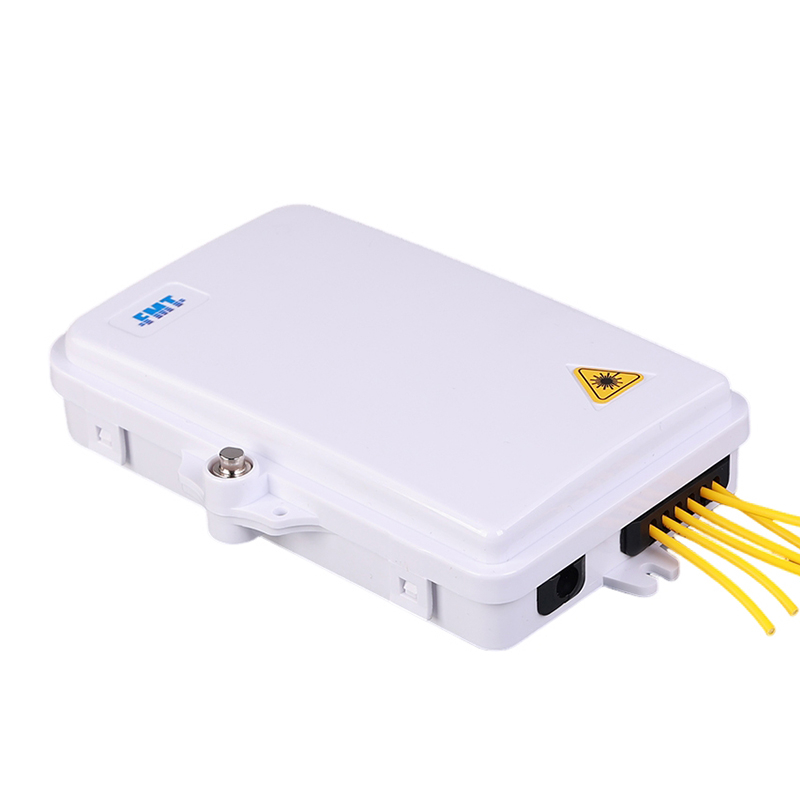

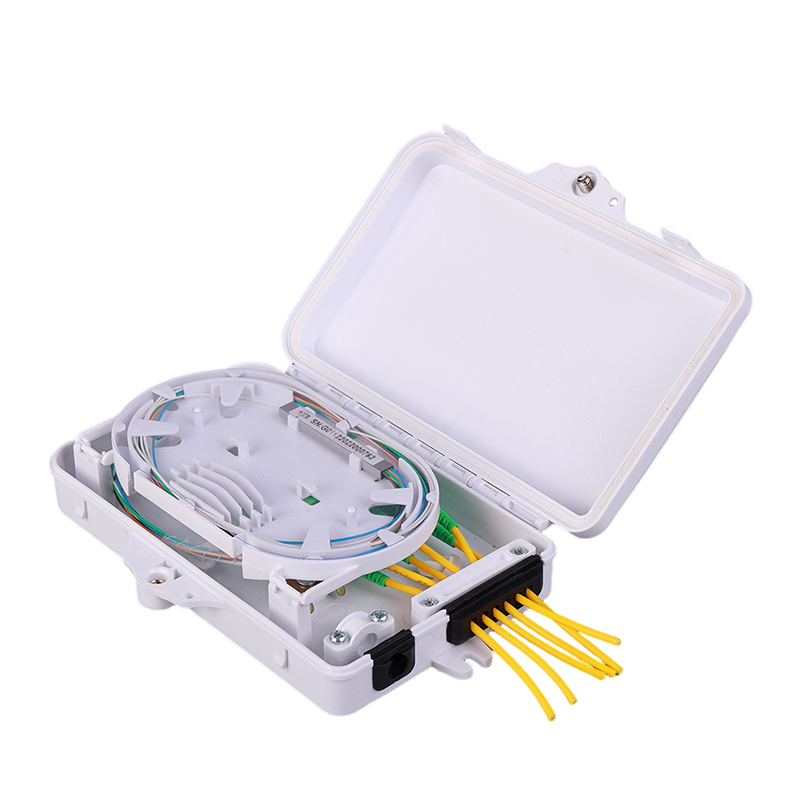

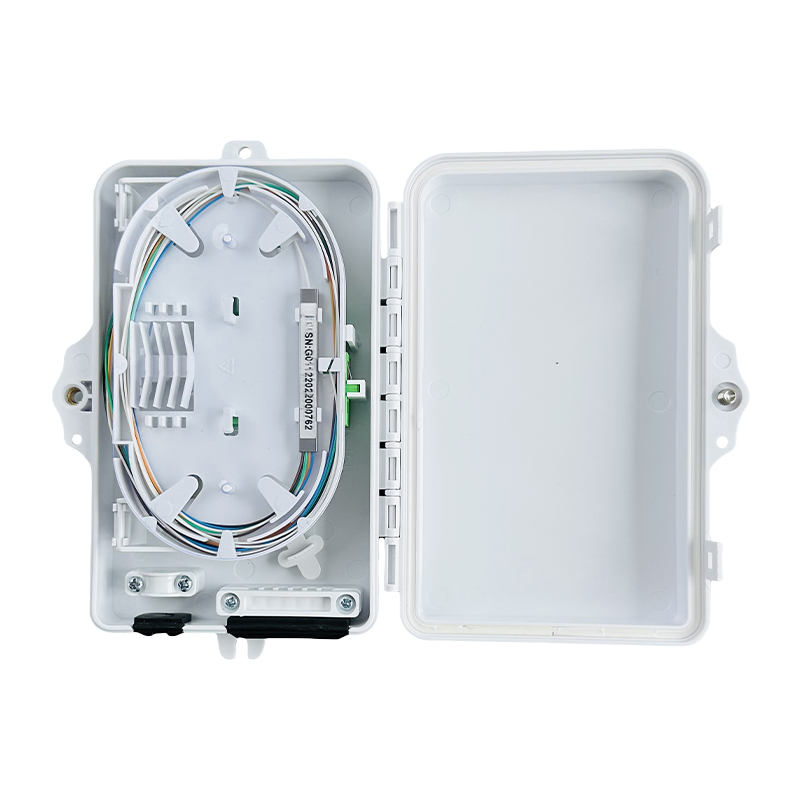

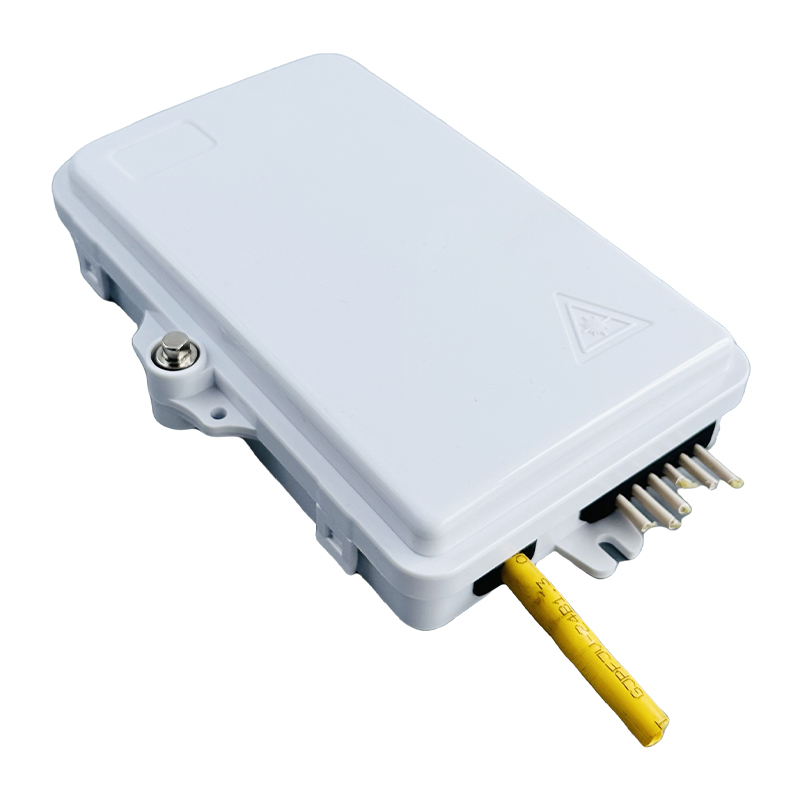

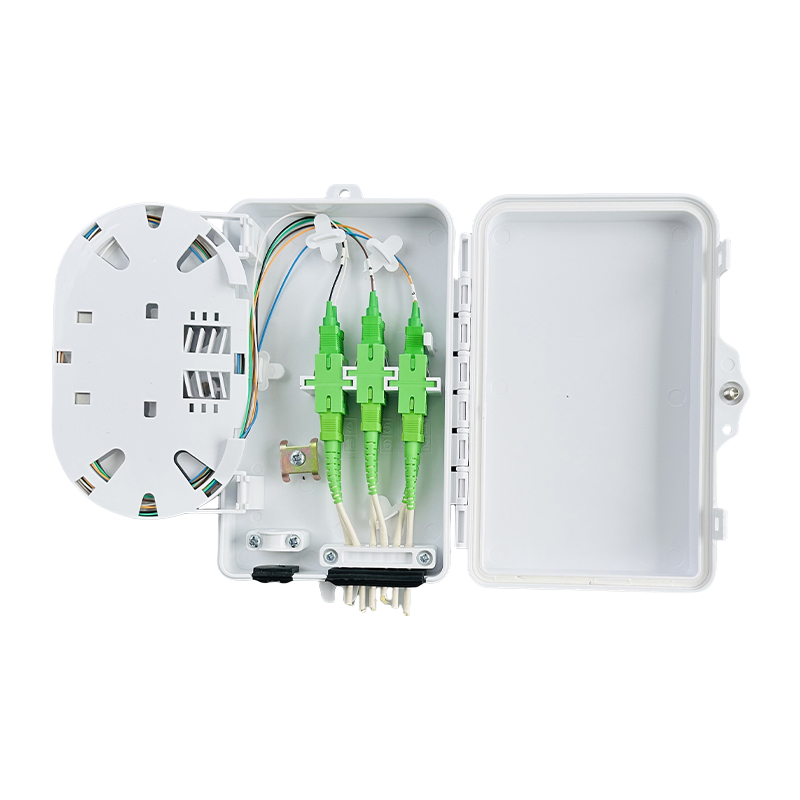

FDB-6K 6-Core FTTH Distribution Box

Application

Serves as a critical termination and distribution point in FTTH networks, offering mechanical protection for fiber optic connections.
Ideal for both indoor (residential buildings, offices) and outdoor (exterior walls, utility areas) environments, ensuring durability in diverse conditions.

Capacities

Splicing Capacity: 6 Fibers
Patching Capacity: 6 SC Adapters
Splitter Capacity: 1×6 Micro PLC Splitter


Availability:



Inquiry Now！ Add to Basket Download Datasheet

Model:
FDB-6K
Download:
FDB-6K Datasheet.pdf
Model:
FDB-6K

Comparison

Features & Benifits

Specification

Packing List

Documentation

FDB-2K / FDB-4K / FDB-6K Comparison

Feature	FDB-2K	FDB-4K	FDB-6K
Splicing Capacity	4/8 Fibers	4/8 Fibers	4/8 Fibers
Patching Capacity	2 SC Adapter	4 SC Adapter	6 SC Adapter
Splitter Slots	1×2 Micro PLC Splitter	1×4 Micro PLC Splitter	1×6 Micro PLC Splitter
Drop Cable Ports	2×Ø3mm	4×Ø3mm	6×Ø3mm

Features & Benifits

Space-Saving Design: Compact structure optimized for installations where space is limited, fitting seamlessly into indoor and outdoor settings.
Flexible Splicing: Supports up to 6 mechanical or fusion splices, compatible with 6 SC or LC duplex adapters for versatile connectivity.
Splitter Compatibility: Integrates smoothly with 1×4, 1×6, or 1×8 micro PLC splitters, enabling efficient fiber distribution to multiple endpoints.
Environmental Resistance: IP54 rating provides protection against dust and water, ensuring consistent performance in varying weather and indoor conditions.
Fiber Protection: Maintains a fiber bend radius greater than 30mm to prevent signal loss and safeguard optical performance during routing.

Specification

Part No.	FDB-6K
Dimensions (L×W×H)	210×135×40 mm
Enclosure Material	ABS or PC/ABS
Box Sealing Method	Silicone Gaskets + Snap-fit + Screw Lock
Cable Sealing Type	Grommet
Cable Entry Ports	1 × Ø7-12mm
Cable Exit Ports	6 × Ø3mm
Patching Capacity (Max)	6 SC Adapters
Splicing Capacity (Max)	4/8 Fibers (Single-core)
Max Splice Trays	1 Tray
Tray Material	ABS
IP Rating	IP56
Mounting	Wall Mount / Pole Mount

Packing List

Carton Size	44×29×58 CM
Carton Capacity	50 PCS/CTN
Carton G.W.	16 KG

FDB-6K Datasheet.pdf

Fibermint Catalogue (2023).pdf
