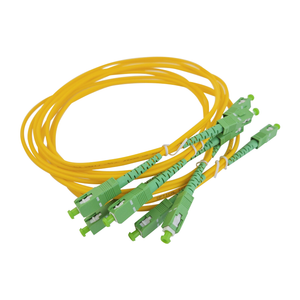

1-1SC Patch Cord

Application

FTTx and Splice Closures: Ideal for use in optical distribution frames (ODF), splice closures, and cross cabinets, providing reliable fiber connections for FTTx networks.
CATV and Data Centers: Supports high-performance connectivity in cable television (CATV) systems and data center cable management, ensuring efficient signal transmission.
Internet of Things (IoT): Facilitates robust fiber connections for IoT applications, enabling smart infrastructure and interconnected devices.
Fusion Splice Trays: Designed for seamless integration in fusion splice trays, offering dependable termination for fiber optic networks.


Availability:



Inquiry Now！ Add to Basket Download Datasheet

Customization Options

Features & Benifits

Specification

Packing List

Documentation

Customization Options

Connector Type: Select from FC, SC, LC, ST (PC or APC polish) or other connector types to match specific splice closure, ODF, or network equipment requirements.

Fiber Type: Choose single-mode (G652, G657), multi-mode, simplex, or duplex fibers to optimize performance for FTTx, CATV, or data center applications.

Cable Diameter: Customize cable diameter (0.9 mm, 1.8 mm, 2.0 mm, 3.0 mm, or other sizes) to suit installation constraints and environmental needs.

Cable Length: Specify custom cable lengths to meet precise deployment requirements for splice trays, IoT, or optical communication systems (contact supplier for details).

Features & Benifits

Low Insertion and High Return Loss: Achieves low insertion loss (≤0.3 dB) and high return loss (PC ≥50 dB, APC ≥55 dB), ensuring superior optical performance and signal integrity.

High Reliability: Offers excellent repeatability (≤0.1 dB) and durability (>1000 push-pull cycles), providing consistent performance in demanding network environments.

Wide Operating Range: Operates reliably from -40°C to +85°C, suitable for both indoor and outdoor applications with robust environmental resilience.

Customizable Design: Supports tailored connector types (FC, SC, LC, ST, PC/APC) and fiber types (single-mode G652/G657, multi-mode, simplex/duplex) for versatile network configurations.

Specification

Part No.	Not specified (Pigtail)
Insertion Loss	≤0.3 dB (single-mode and multi-mode)
Return Loss	PC ≥50 dB, APC ≥55 dB (single-mode); multi-mode not specified
Repeatability	≤0.1 dB
Push-Pull Durability	>1000 cycles
Operating Temperature	-40°C to +85°C
Test Wavelength	1310/1550 nm
Cable Types	G652, G657 (single-mode), multi-mode, simplex, duplex
Cable Diameter	0.9 mm, 1.8 mm, 2.0 mm, 3.0 mm, or customized
Connector Types	FC (PC/APC), SC (PC/APC), LC (PC/APC), ST, or customized

Packing List

Carton Capacity

5 PCS/Bag or Customize
