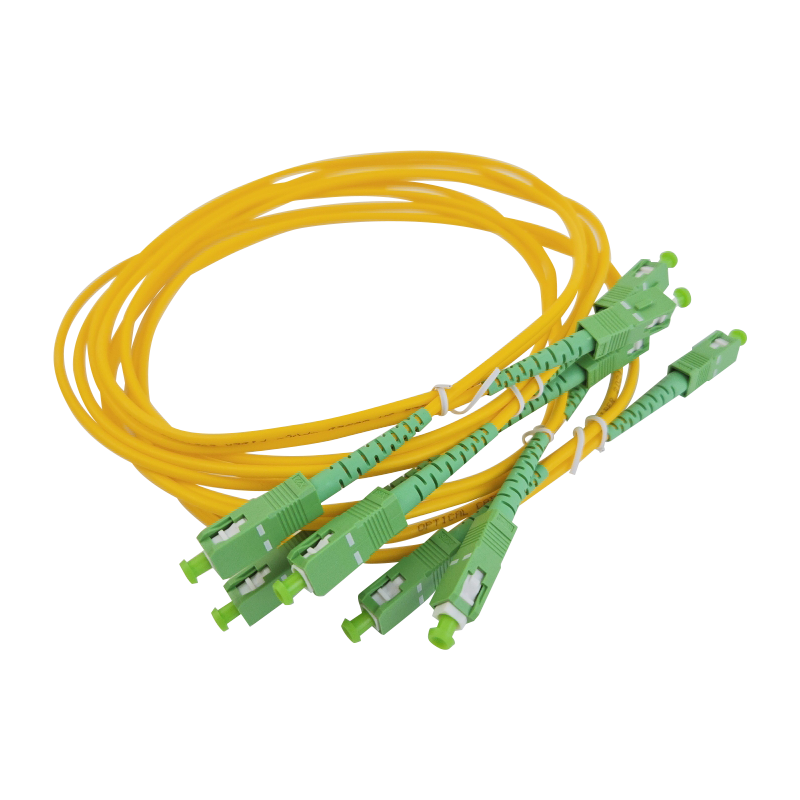

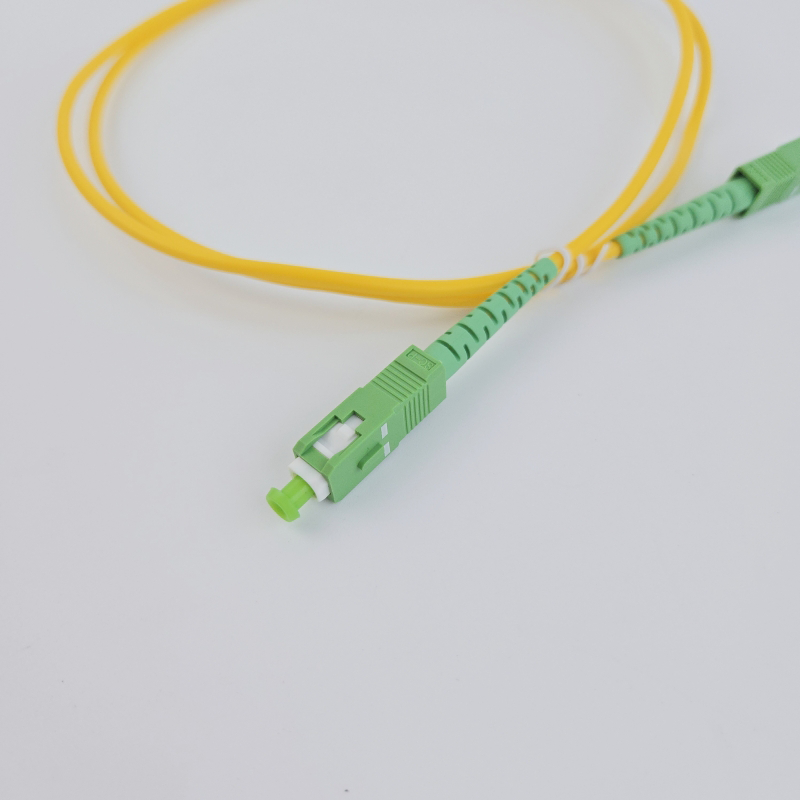

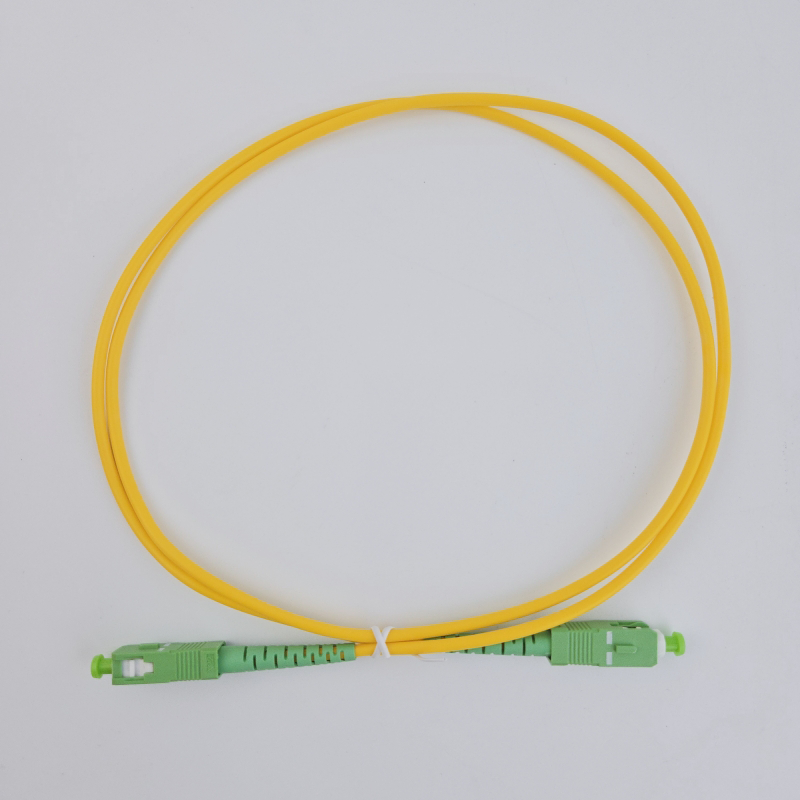

1-1SC Patch Cord

Application

FTTx Network Connectivity: Supports efficient fiber optic connections for Fiber-to-the-X (FTTx) networks, ideal for optical distribution frames (ODF) and user access points.
CATV and Data Centers: Provides reliable connectivity for cable television (CATV) systems and high-density data center environments, ensuring seamless signal transmission.
Internet of Things (IoT): Enables robust fiber connections for IoT applications, supporting smart infrastructure and interconnected devices.
Optical Communication Systems: Facilitates high-performance fiber optic communication in telecom and enterprise networks, enhancing bandwidth and reliability.


Availability:



Inquiry Now！ Add to Basket Download Datasheet

Customization Options

Features & Benifits

Specification

Packing List

Documentation

Customization Options

Connector Type: Select from FC, SC, LC, ST (PC or APC polish) or other connector types to match specific network equipment and connectivity requirements.

Fiber Type: Choose single-mode (G652, G657), multi-mode, simplex, or duplex fibers to optimize performance for FTTx, CATV, or data center applications.

Cable Diameter: Customize cable diameter (0.9 mm, 1.8 mm, 2.0 mm, 3.0 mm, or other sizes) to suit installation constraints and environmental needs.

Cable Length: Specify custom cable lengths to meet precise deployment requirements for ODF, IoT, or optical communication systems (contact supplier for details).

Features & Benifits

Low Insertion and High Return Loss: Achieves low insertion loss (≤0.3 dB) and high return loss (PC ≥50 dB, APC ≥55 dB), ensuring excellent optical performance and signal integrity.

High Reliability and Durability: Offers exceptional repeatability (≤0.1 dB) and withstands >1000 push-pull cycles, providing long-term reliability in demanding environments.

Wide Operating Temperature Range: Performs reliably from -40°C to +85°C, suitable for both indoor and outdoor applications with robust environmental resilience.

Flexible Customization: Supports customizable connector types (FC, SC, LC, ST, PC/APC) and fiber types (single-mode G652/G657, multi-mode, simplex/duplex) for versatile network configurations.

Specification

Part No.	Not specified (Pigtail)
Insertion Loss	≤0.3 dB (single-mode and multi-mode)
Return Loss	PC ≥50 dB, APC ≥55 dB (single-mode); multi-mode not specified
Repeatability	≤0.1 dB
Push-Pull Durability	>1000 cycles
Operating Temperature	-40°C to +85°C
Test Wavelength	1310/1550 nm
Cable Types	G652, G657 (single-mode), multi-mode, simplex, duplex
Cable Diameter	0.9 mm, 1.8 mm, 2.0 mm, 3.0 mm, or customized
Connector Types	FC (PC/APC), SC (PC/APC), LC (PC/APC), ST, or customized

Packing List

Carton Capacity

5 PCS/Bag or Customize

Fibermint Catalogue (2023).pdf

Related Products

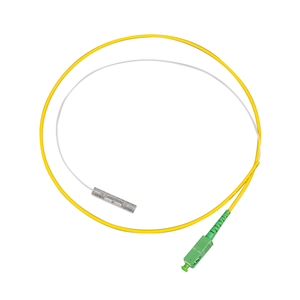

1-1SC Patch Cord
