Specification

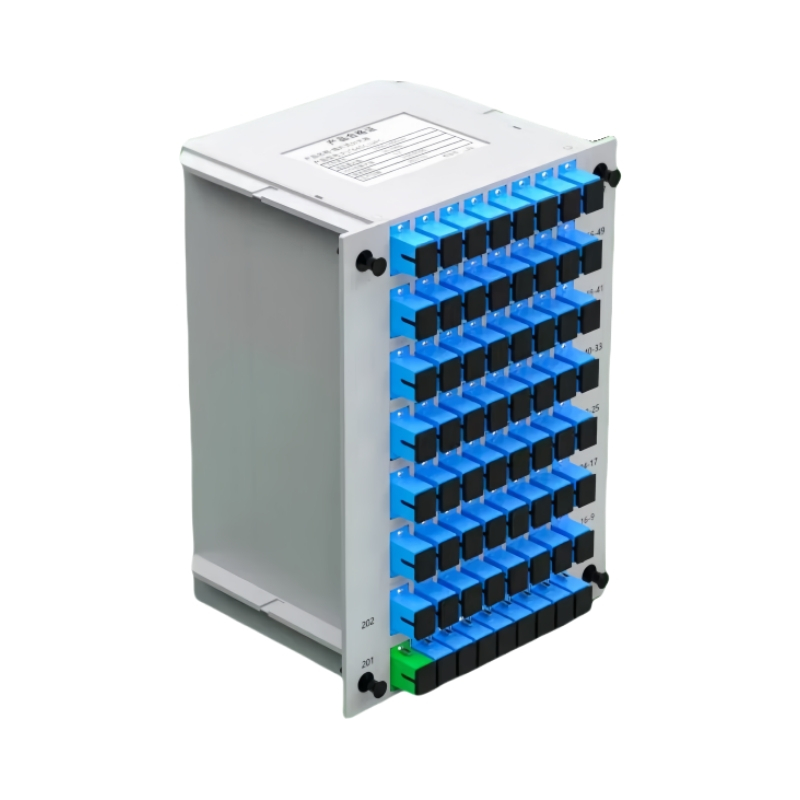

| Parameters | 1×64 |
| Operating Wavelength (nm) | 1260-1650 |
| Insertion Loss (dB ) | Max 20.6 |
| Uniformity (dB) | Max 2 |
| Return Loss (dB) | UPC≥50 | APC≥55 |
| PDL (dB) | 0.4 |
| Directivity (dB) | 55 |
| Operating Temperature (℃) | -40°C to +85°C |
| Storage Temperature (℃) | -40°C to +85°C |
| Dimension (L×W×H) | 130×180×102 mm |
Notes
* All measurements were done at room temperature,and specifications with adapters.
